Scribe Master Sight Line Worktop Jig 750mm Precision Engineered KWJ750 PRO
Scribe Master Sight Line Worktop Jig 750mm Precision Engineered KWJ750 PRO
Couldn't load pickup availability

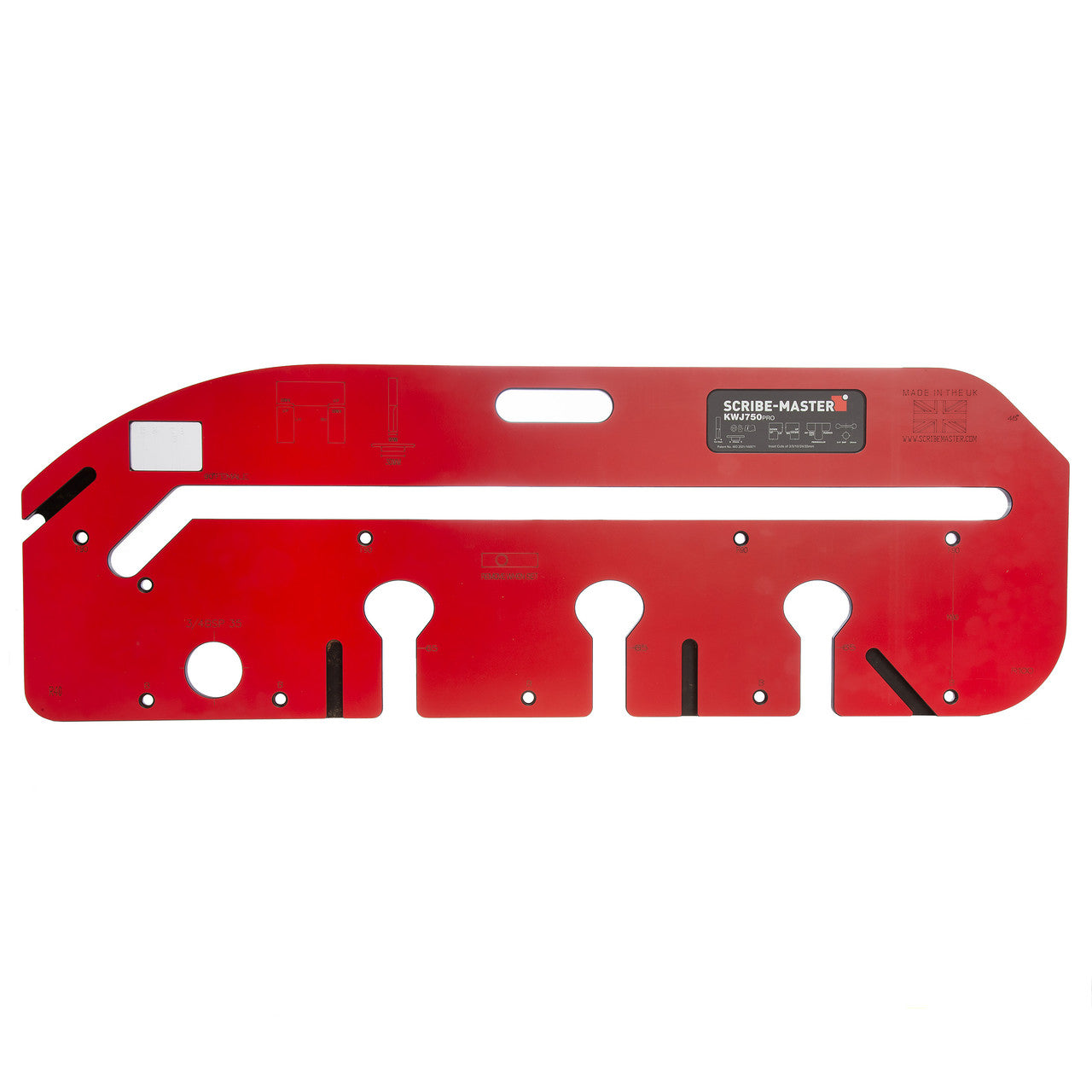

Scribe-Master KWJ750 PRO Sight Line Worktop Jig 750mm
The Scribe-Master KWJ750 PRO is a precision-engineered 750mm kitchen worktop jig, featuring advanced Square Window Sight Line Technology. Designed for accuracy and efficiency, this jig ensures all settings are made from the front edge, eliminating discrepancies from scribing and accommodating non-standard worktops. As the UK’s leading name in woodworking jigs, Scribe-Master has been providing high-quality solutions for major companies in the woodworking industry for over eight years.
Features:
- Sight Line Technology: Front edge setting eliminates discrepancies from scribing or using non-standard tops

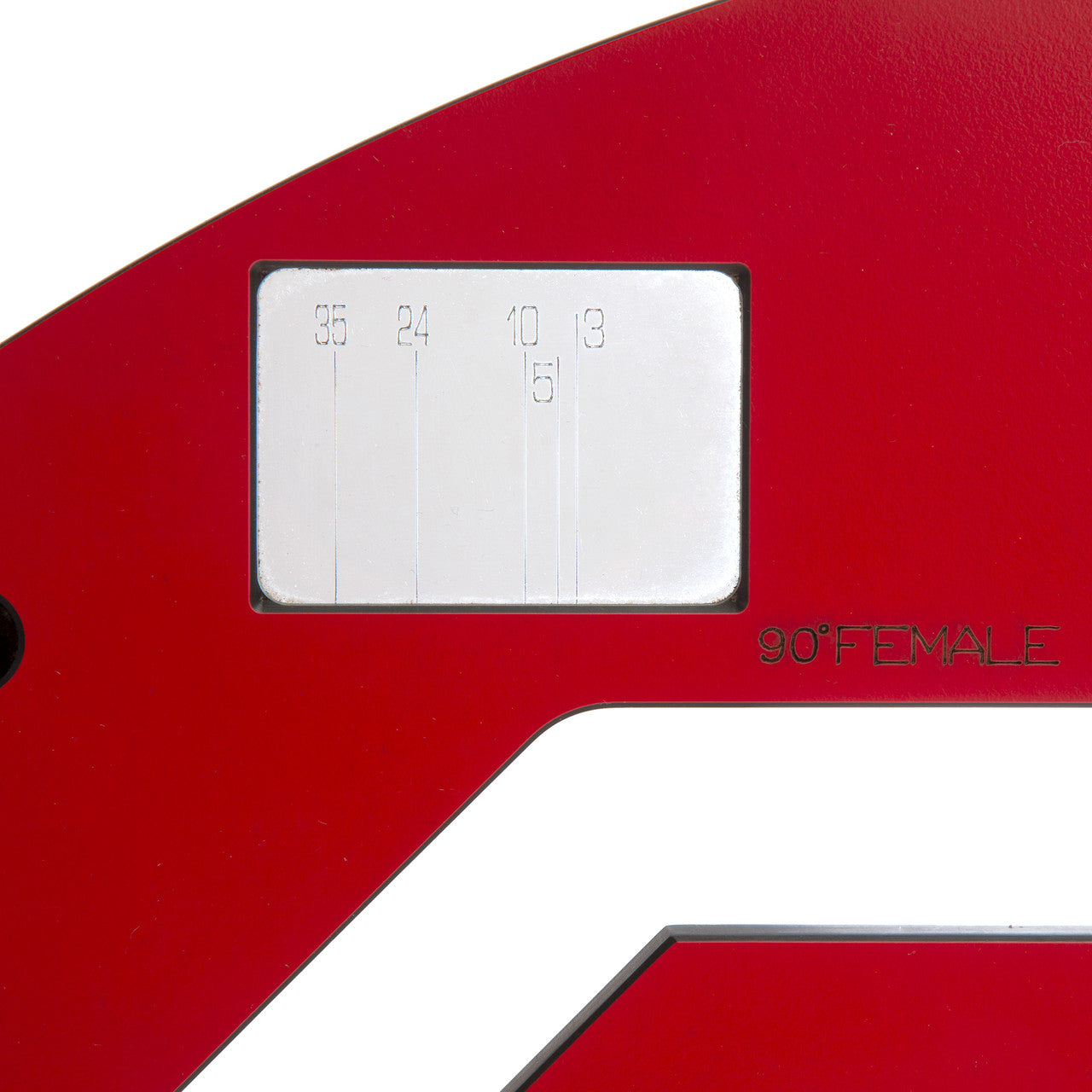

- The Sight Line window allows for quick and precise settings
- Accommodates worktop joints from 150mm to 750mm
- Five inset options using supplied cams for flush edge and handle-less contemporary door styles
- Single Pass Cutting: Ideal for narrower insets, reducing wear and tear on routers and cutters
- Suitable for compact laminates, solid wood, chipboard laminates, and composites
- Fast, easy, and intuitive setup with the Sight Line window and recessed clamping for precise cuts in less time
- Offset Cams Included: Quick inset setting and depth settings for varying Dog Bone bolt sizes
Comes With:

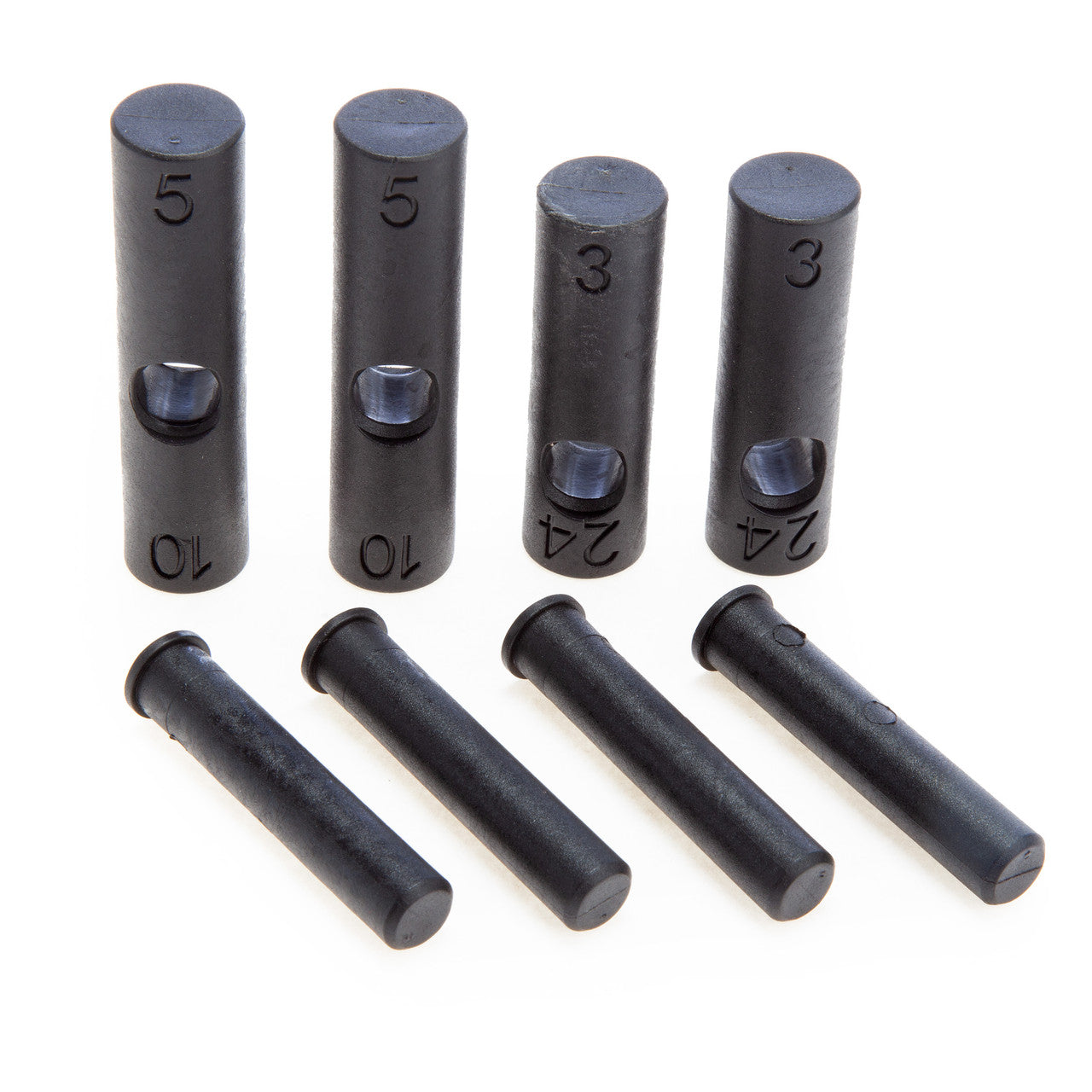

- 4 x ABS Plastic Pins, 4 Backset Pins
Specification:
- Length: 985 mm
- Width: 335 mm
- Thickness: 12 mm
- Weight: 4.73 kg
- End Cut: 45 degrees
- Corner Radius: 40 mm, 100 mm, 400 mm
- Corner Mitre Joint: 45 degrees
- Female Cut Material Width Loss (Inset): Variable
- Bolt Recesses: 3
- Bolt Recess Centres: 175 + 175 mm
- Bolt Recess Width: 14 mm
- Guide Bush: 30 mm (not included)
- Plunge Router: 1/2-inch (min. 1300 watts, not included)
- Cutter: 12.7 mm x 50 mm cut (not included)
- Clamps: Two (not included)
