Scribe-Master

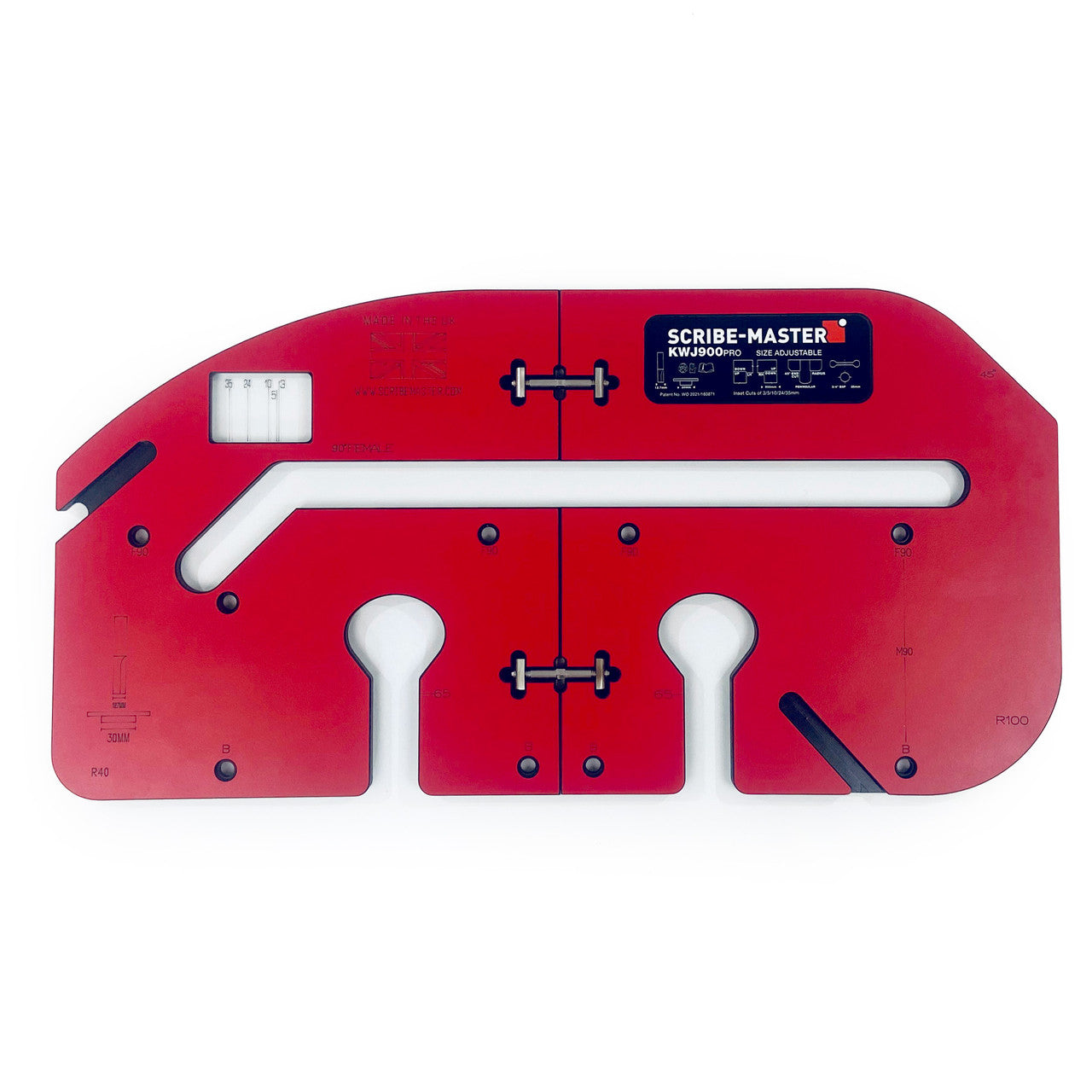

Scribe Master Adjustable Length Sight Line Worktop Jig 150-900mm KWJ900PRO

Scribe Master Adjustable Length Sight Line Worktop Jig 150-900mm KWJ900PRO

£119.44 GBP
£119.44 GBP
Sale Sold out
Shipping calculated at checkout.

This Scribe-Master Adjustable Length Worktop Jig Is Ideal for Various Worktop Materials

The Scribe-Master KWJ900PRO is an innovative 150-900mm adjustable kitchen worktop jig, featuring the advanced Square Window Sight Line Technology. Designed for precision and ease, this worktop jig simplifies your cutting process with its easy patent-pending system. Just mark your cut line with your square, align the line with the window in the jig, and make your cut - no more guessing or extra measurements from the back end of the jig.

Features:

  • All adjustments are made from the front edge, eliminating discrepancies from scribing or non-standard width worktops using the Sight Line Technology Window

  • Easy Set Reference Window: Quickly set up for any backset by aligning to a measured line

  • Five Backset Options (3, 5, 10, 24, 35mm) to accommodate new materials, edge profiles, and trends

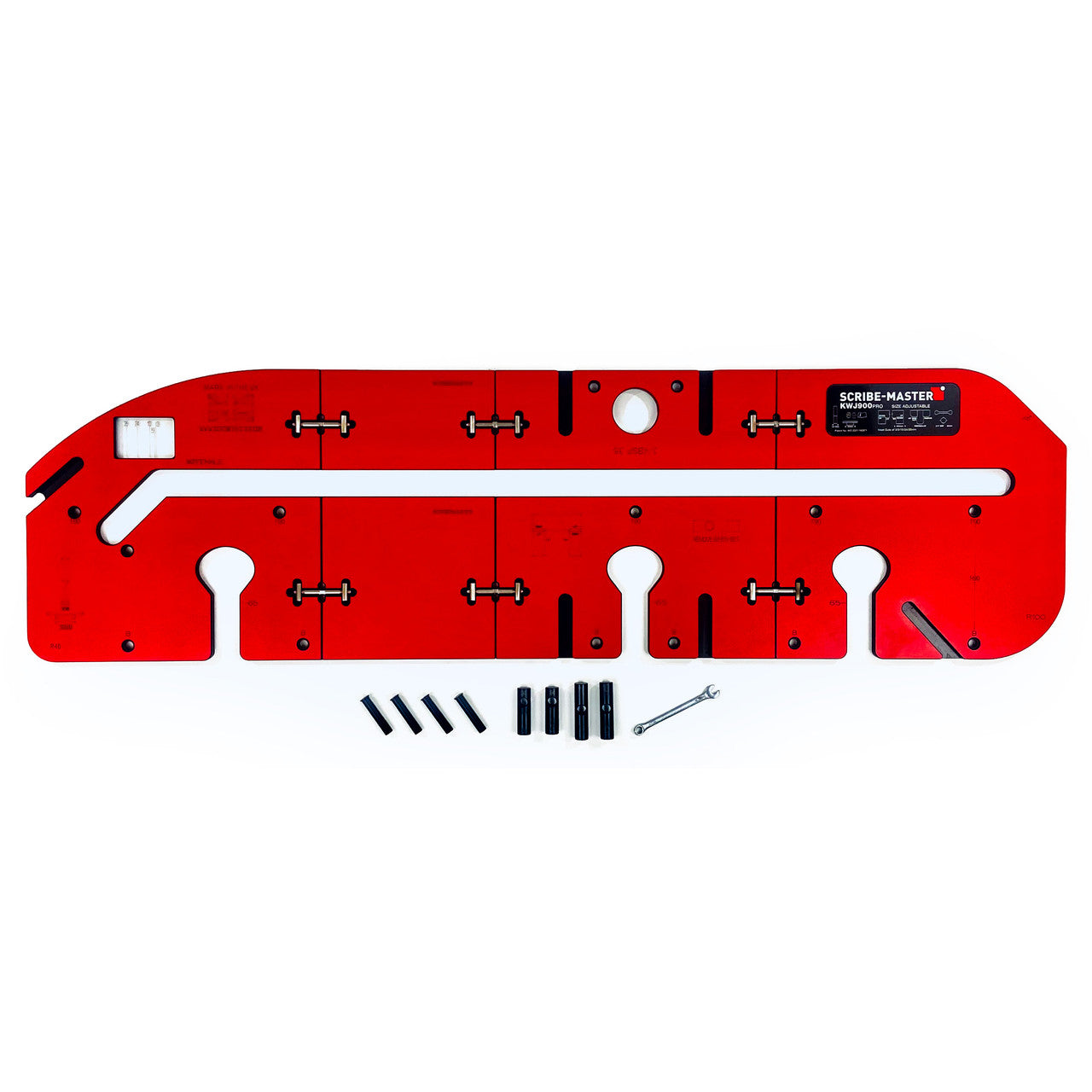

  • Configurable as a 300mm, 750mm, or 900mm jig

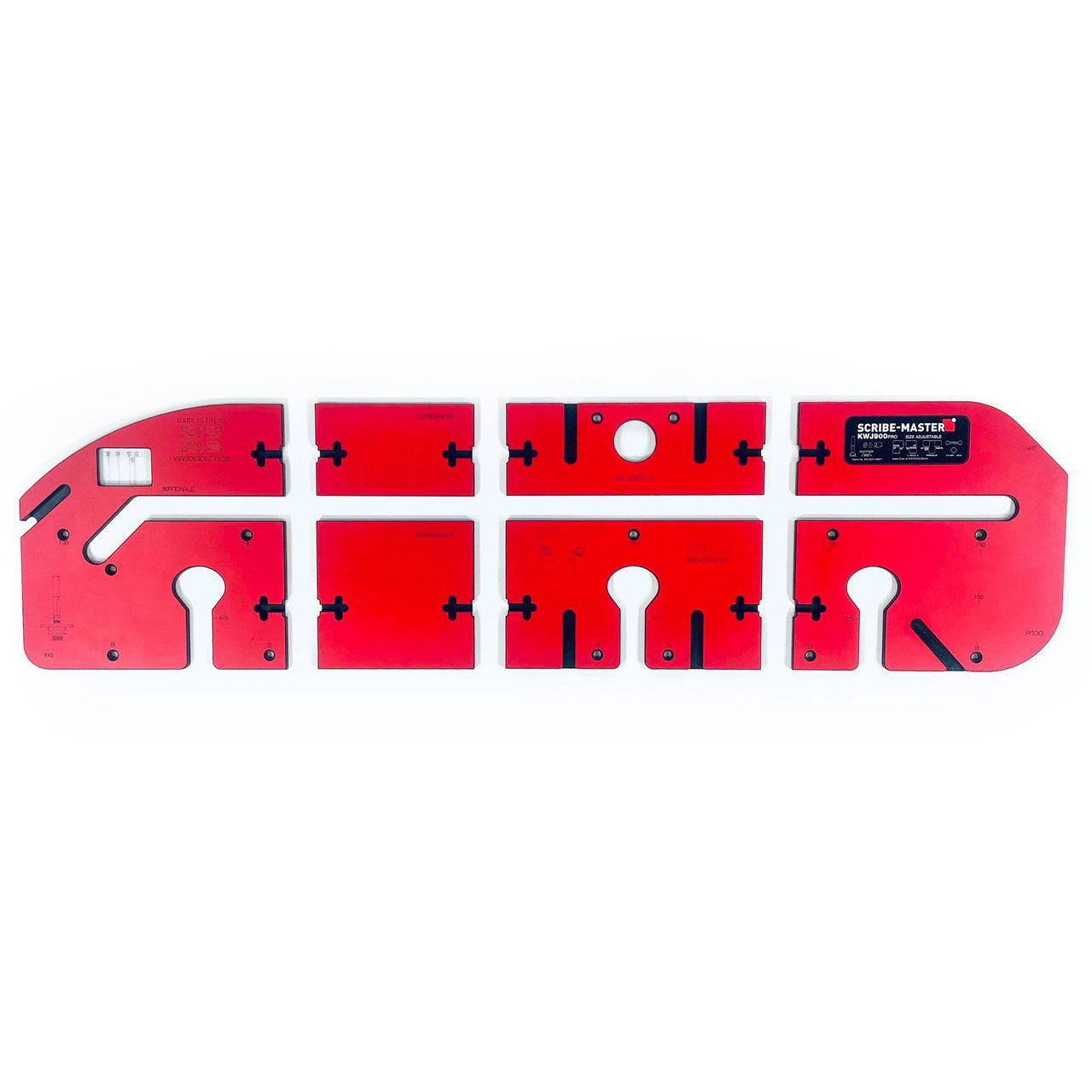

  • Breaks down to 35cm x 35cm x 6cm for easy storage and transport

  • Includes 2 separate 3/4" BSP/Door Hinge & Dog Hole jigs

  • Allows cutting worktops flush with door faces for handleless contemporary styles without extra measuring

  • Single Pass Joint Cutting minimises router strain and extends cutter life for narrower backsets and thinner worktops

  • Cuts a full male and female joint in 15 minutes, including setup time

  • Suitable for compact laminate, composite, solid wood, and chipboard laminate

  • No need for alignment pins for various worktop widths

  • Simple and intuitive - measure, mark, clamp, and cut

  • Offset Cams: Unique backset wedges for consistent, easy setting

  • Edge Profile Compatibility: Covers square edge, small radius, post form radius, and bullnose profiles

  • Clamp Recesses: Designed for below-the-surface clamping for unrestricted routing with plunge saw clamps

  • Engraved Markings: Clear reference points for precise work.

Comes With:

  • 6 Fasteners, 4 x ABS Plastic Pins, 4 Backset Pins, Spanner

Specification:

  • Length - 985 mm
  • Width - 335 mm
  • Thickness - 12 mm
  • End Cut - 45 degrees
  • Corner Radius - 40 mm
  • Corner Radius - 100 mm
  • Corner Radius - 400 mm
  • Corner Mitre Joint - 45 degrees
  • Female cut material width loss (inset) variable
  • Bolt recesses - 3
  • Bolt recess centres - 175 + 175 mm
  • Bolt recess width -14 mm
  • Guide bush - 30 mm (not included)
  • Plunge router (not included) - 1/2-inch (min. 1300 watts)
  • Cutter - 12.7 mm x 50 mm cut (not included)
  • Clamps - Two (not included)
  • Weight - 4.73 kg
