Makita 18V LXT Cordless Kit Drill Router & Planer 2 × 5.0Ah Batteries DLX3116TJ

Makita DLX3116TJ 18V LXT 3 Piece Kit - DHP485 Combi Drill, DRT50 Router/Trimmer & DKP180 Planer (2 x 5.0Ah Batteries)

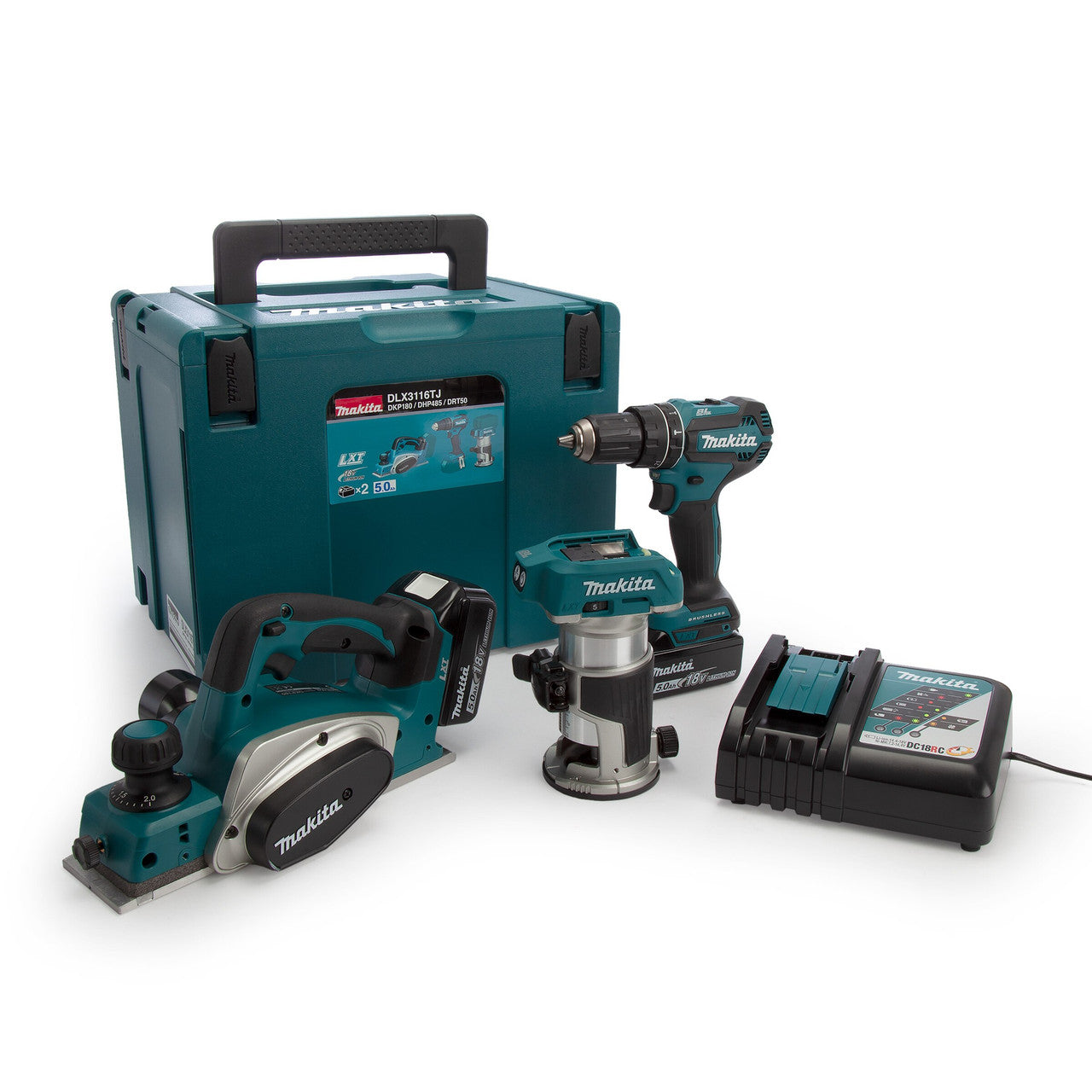

The Makita DLX3116TJ is a 3 Piece LXT Cordless Kit containing the DHP485 Combi Drill, DRT50 Router and DKP180 Planer. Supplied in a MakPac Case, complete with 2 Batteries and a Charger, this kit is the ideal solution for all joinery work.

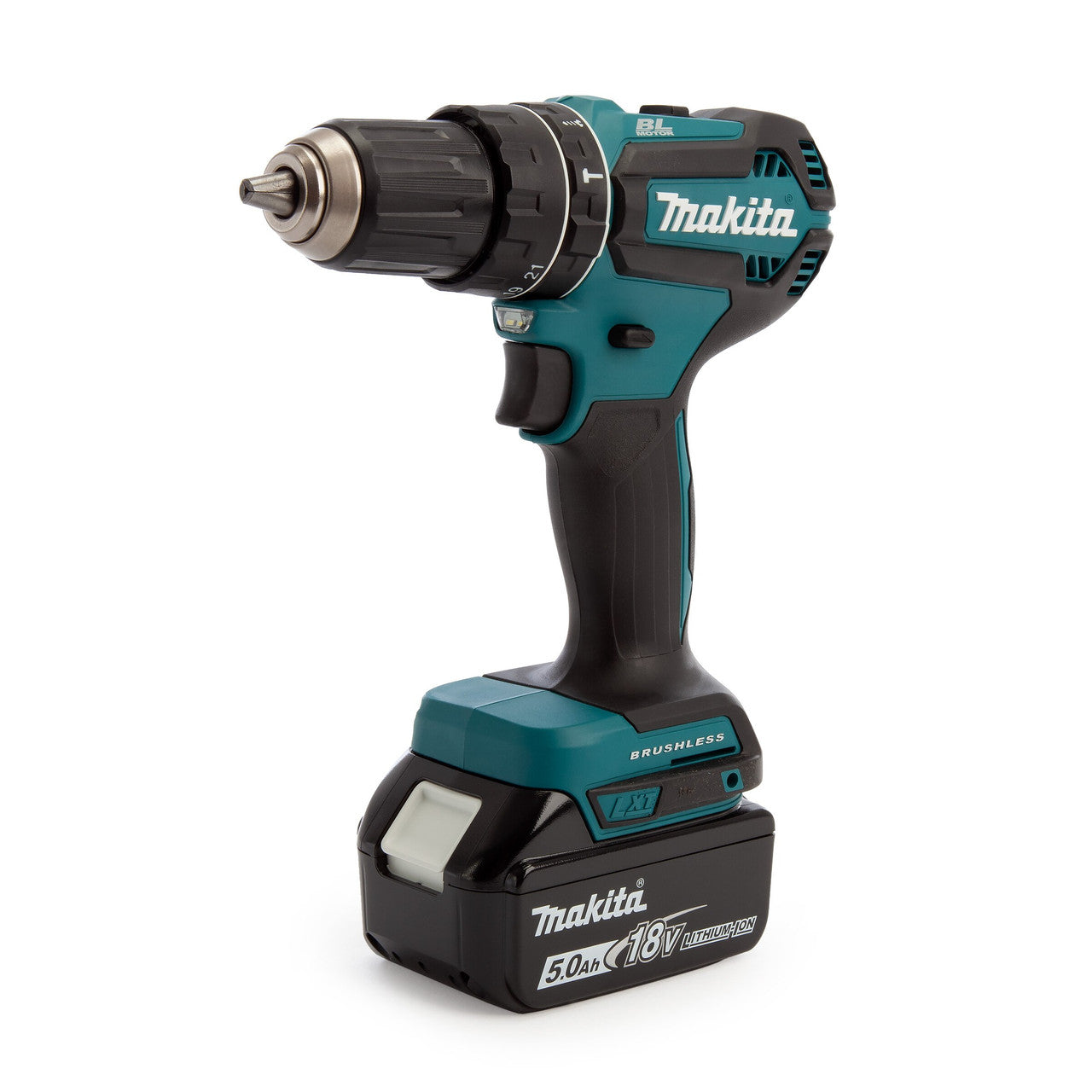

DHP485 Features:

The Makita DHP485 is an 18V cordless combi drill and accessory set that is ideal for a variety of applications to suit any trade. It has been developed based on the model DHP459 and has both forward and reverse rotation. It features a single sleeve keyless chuck which allows for easy bit installation and removal using only one hand and the ergonomic soft grip provides great comfort. The fully brushless motor ensures maximum power and the built-in LED job light allows for precision even in dark, hard to reach areas.

• 2 mechanical gears
• Variable speed control by trigger
• Best possible ergonomic handle for drill-driver applications
• Electric brake for precision work
• Ergonomic handle for drill-driver applications

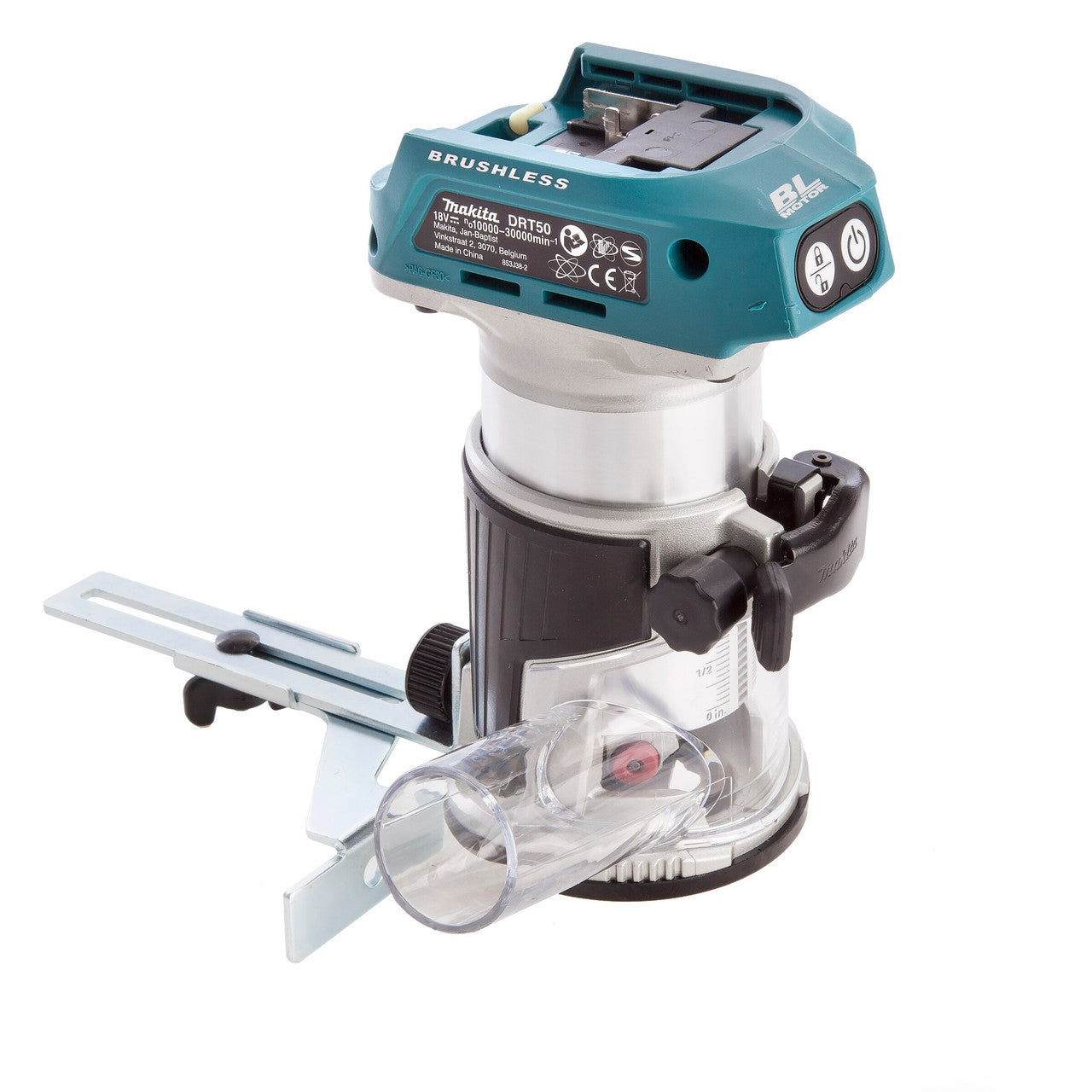

DRT50 Features:

Makita's first Cordless Brushless Laminate Trimmer, DRT50, featuring the same style base form factor as the electric compact router, RT0701C has an efficient Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. It's engineered for a full range of cabinetry and woodworking applications with a variable speed control dial (10,000 - 30,000) RPM) to match the speed to the application, electronic speed control to maintain constant speed under load and soft start feature for smoother start-ups and better accuracy

• Brushless motor
• Soft start
• Variable speed by dial
• Constant speed control
• Twin LED job lights
• Push button switch with lock on/off
• Connectable to dust extractor
• Aluminium base for higher durability and accuracy
• Aluminium housing
• Shaft lock
• Compatible with Makita RT0700 series router bases

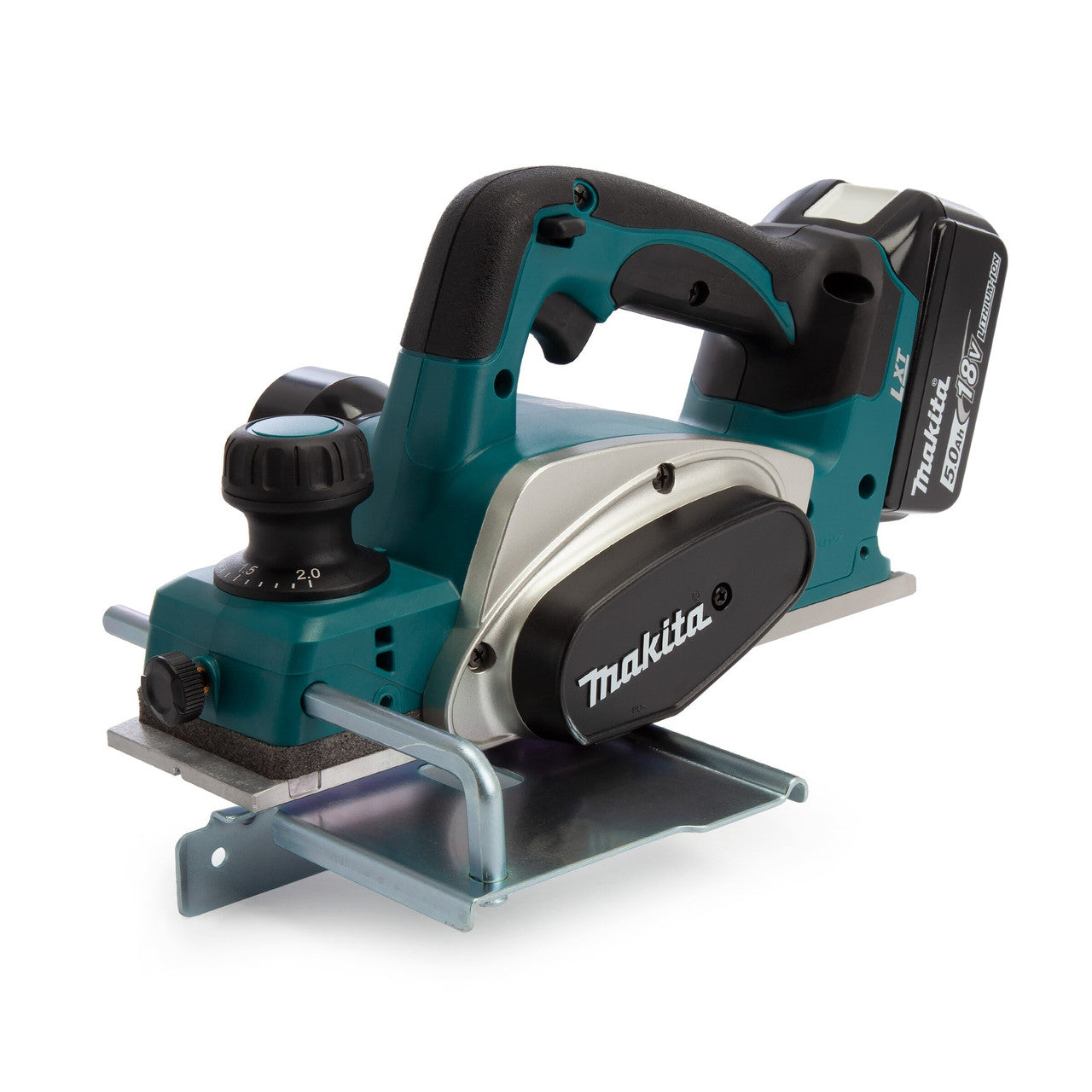

DKP180 Features:

The Makita DKP180 is a powerful 82mm Cordless Planer, giving freedom to move around the job site without the constraint of a power socket being required. Comes complete with an easy to use adjustable depth setting and large depth adjustment knob with click stops and easy to read scale with 0.1mm divisions.

• Planes a width of 82mm (3¼") in a single pass
• Unrivalled for sheer power, size and performance
• Fitted with a comfortable operator handle with a rubberised soft grip which is widely covered with elastomer for more comfort. control and less fatigue
• Straight line face for easy to push handle
• A precision machined aluminium base allows for planing accuracy and the cutter head makes 14000 cuts per minute for fast stock removal
• The lock-on button gives the operator the option of continuous operation
• Left and right handed use due to the buttons on either side of the handle
• Dust extraction port on the side with enhanced chip ejection
• Adjustable up to a 2mm depth of cut
• Shoe on the underside stops accidental laying down of planer while the blade is still moving. This limits the damage on the workpiece and the blades from scratches.
• Rebates to a maximum depth of 9mm
• V-Groove on base for easy chamfer cutting

Comes with:

• 2 x DKP180 82mm Planing Blades
• DKP180 Fence Guide
• DKP180 Blade Changing Wrench
• DKP180 Blade Adjustment Tool
• DRT50 Laminate Trimmer Base
• DRT50 Straight Guide
• DRT50 10mm Template Guide Bush
• DRT50 6.35mm Collet Cone (1/4")
• DRT50 8mm Collet Cone

Specification:

DHP485:

• Capacity in Steel: 13 mm
• No Load Speed (Lo): 0 - 500 rpm
• No Load Speed (Hi): 0 - 1,900 rpm
• Capacity in Masonry: 13 mm
• Chuck Capacity: 1.5 - 13 mm
• Blows per Minute (Hi) - ipm: 0 - 28,500 ipm
• Blows per Minute (Lo) - ipm: 0 - 7,500 ipm
• Capacity in Wood: 38 mm
• Torque Settings: 21 + drill
• Vibration K factor: 1.5 m/sec²
• Noise sound pressure: 82 dB(A)
• Noise sound power: 93 dB(A)
• Max. Fastening Torque (Soft Joint): 27 Nm
• Max. Fastening Torque (Hard Joint): 50 Nm
• Vibration (Impact drilling into concrete): 8.0 m/sec²
• Vibration (Drilling into metal): 2.5 m/sec²

DRT50:

• Collet Capacity: 3/8" and 1/4"
• Noise sound pressure: 78 dB(A)
• Plunge Capacity (Trimmer): 0 - 40 mm
• Plunge Capacity (Plunge): 0 - 35 mm (Plunge base sold separately)
• No Load Speed: 10,000 - 30,000 rpm
• Vibration K factor: 1.5 m/sec_
• Vibration: Cutting MDF: 4.5 m/sec_
• Vibration no load: 2.5 m/sec_

DKP180:

• Planing Width: 82mm - 3¼"
• Planing Depth: 2mm
• Max rebate depth: 9mm
• No load speed: 14000rpm

PLEASE NOTE - video shows older model planer with the same specification
