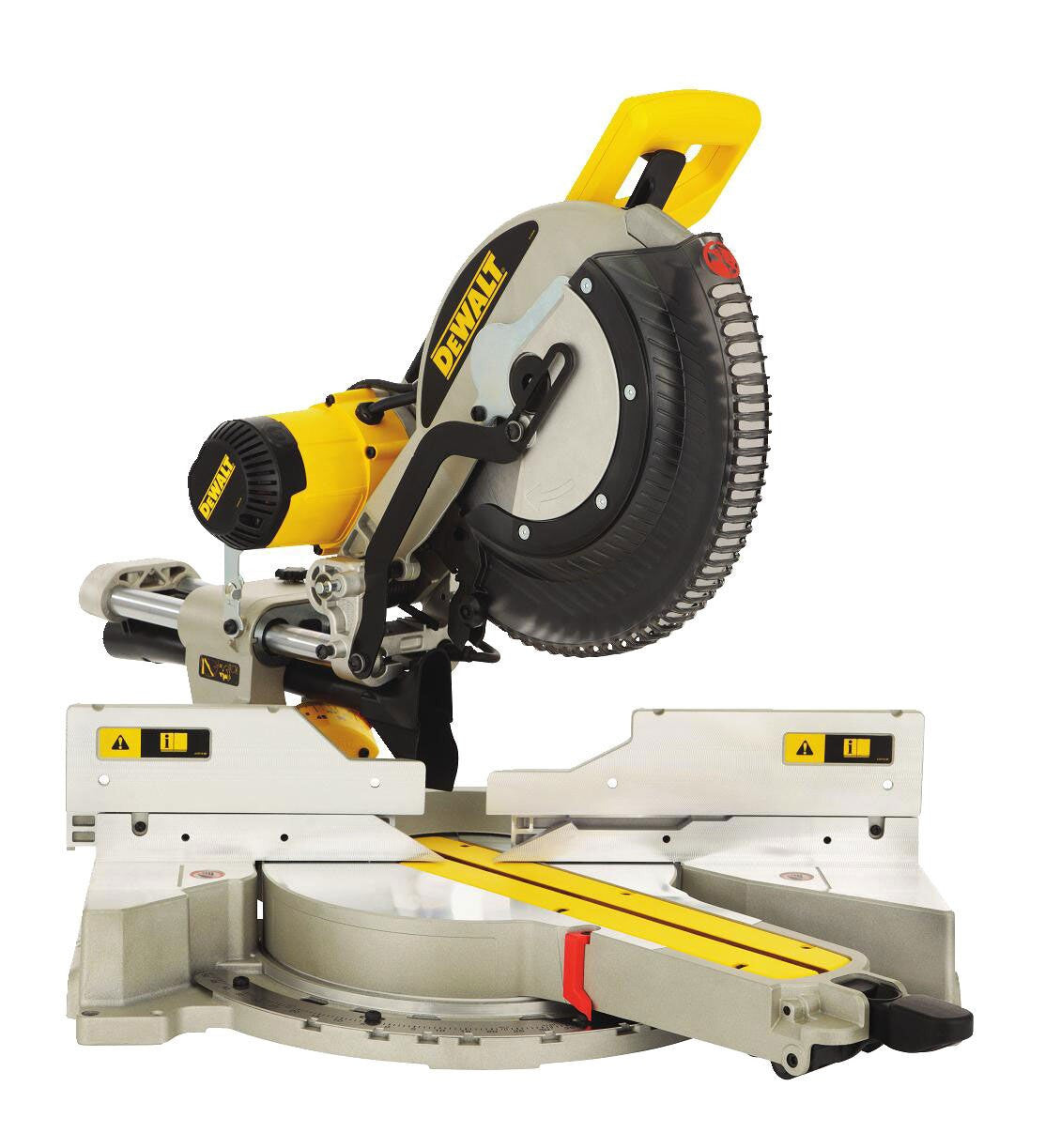

Dewalt DWS780 305mm Double Bevel Sliding Compound Mitre Saw with XPS (240V)

Cut large construction timbers up to 110 x 303mm with this electric mitre saw

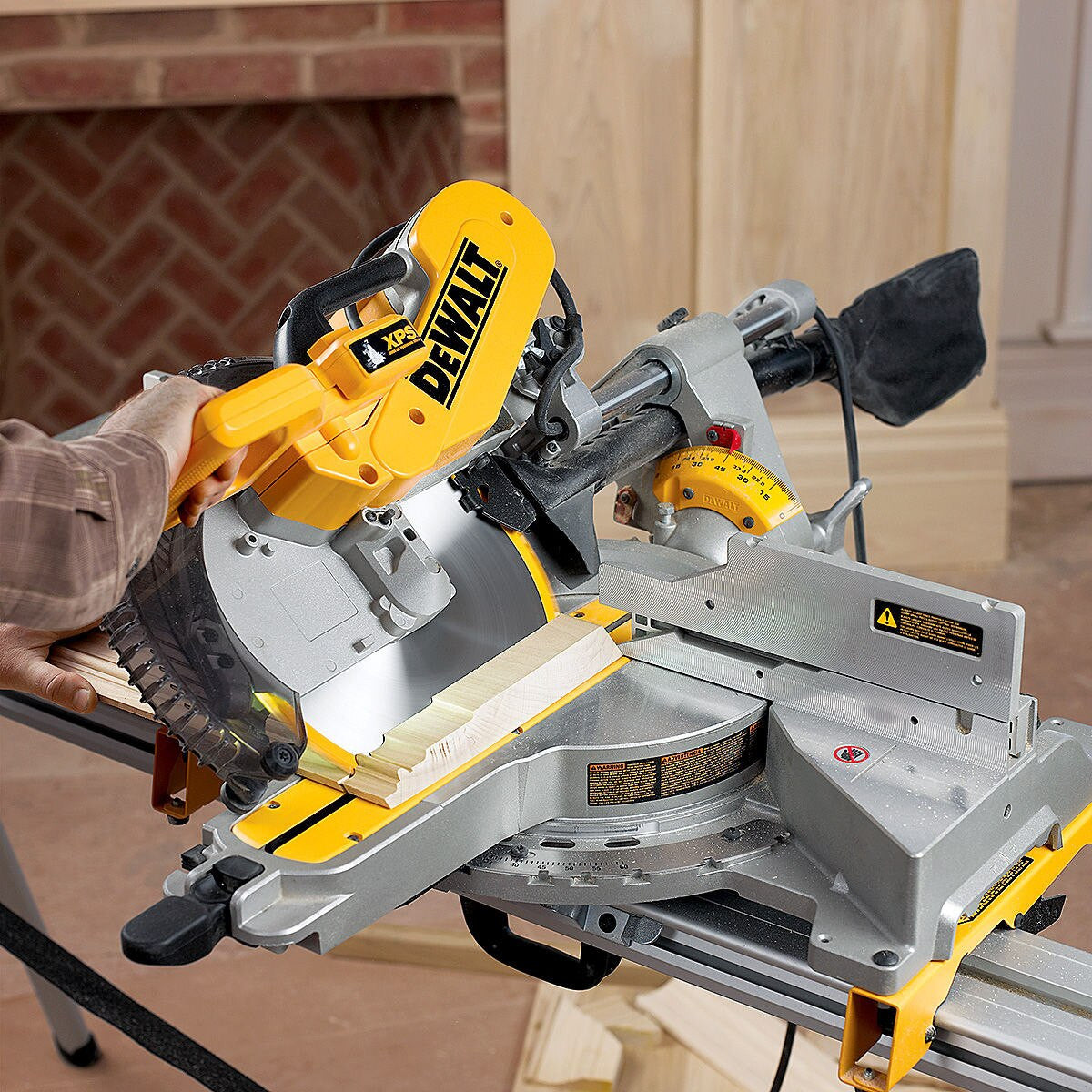

The Dewalt DWS780 mitre saw is the evolution of the highly popular DW718XPS and features increased capacity, a brighter XPS system, increased portability and better dust extraction. With massive cutting capability, this Dewalt mitre saw performs in both small profiles and large construction timbers up to 110 x 303 mm. The XPS shadow line cut indicator provides accurate and fast alignment of the blade while lighting the job in hand for faster work rate. Overall a great piece of high-quality kit.

Features:

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm

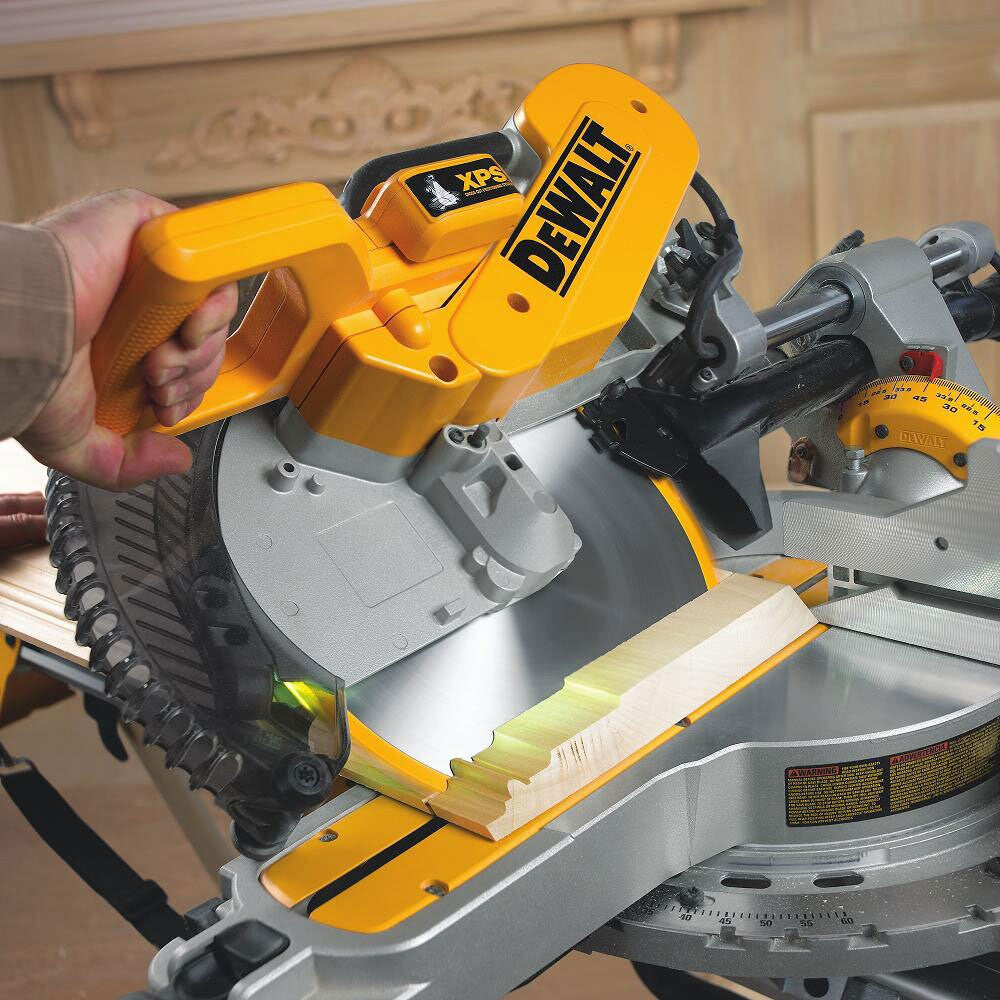

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required
• Heavy-duty durability with the ability to fully adjust your machine to maintain accuracy over the life fo the tool.

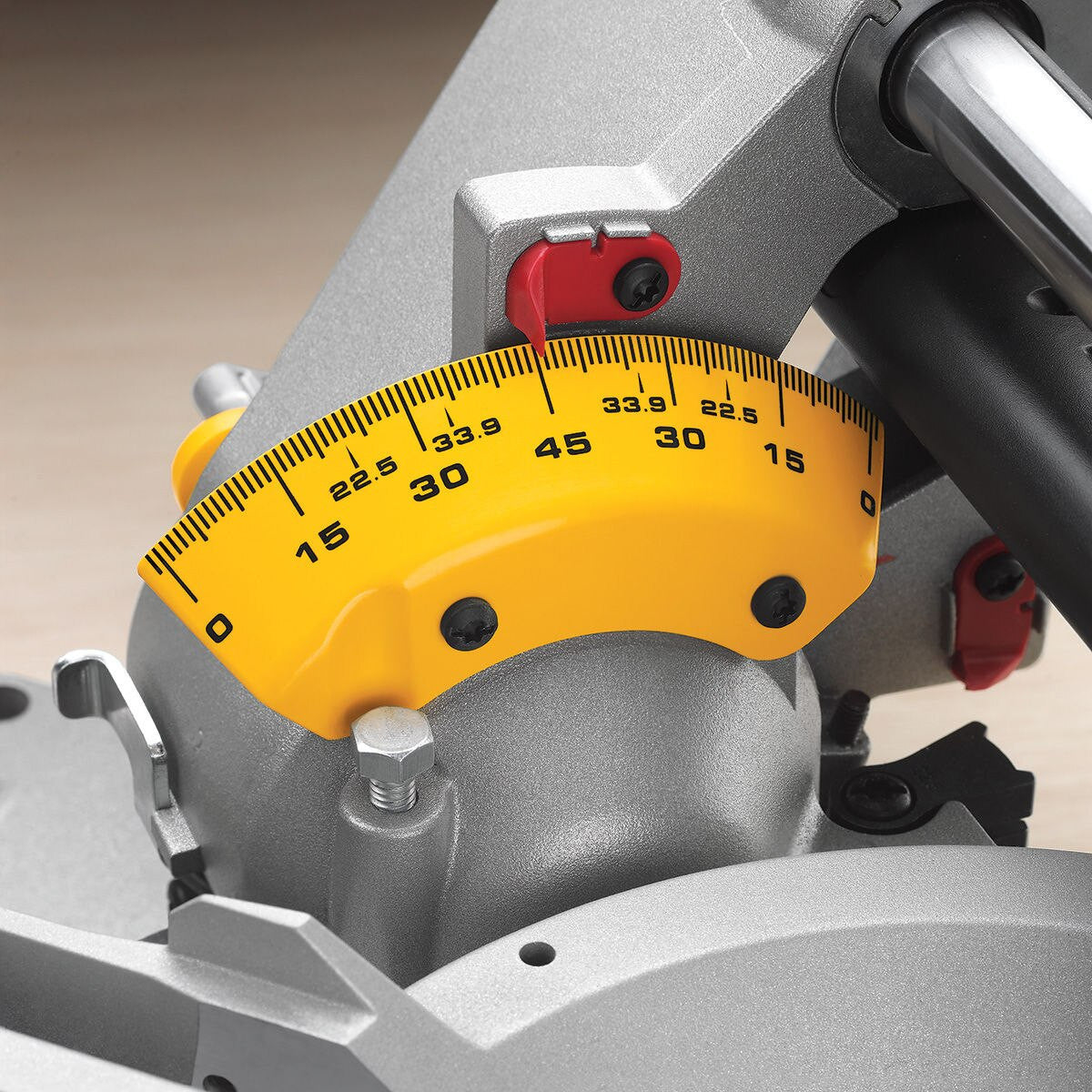

• New quick release bevel stop setting provides an accurate and simple setting of bevel angles up to 49° left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
• Long-life Accuracy in Table and Fence Design
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the job site
• Outstanding dust control and deflection away from cutting area
• Electronic speed control for adjusting cutting speed when cutting materials other than wood
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Comes with:

• High Quality 60 tooth blade
• Blade spanner
• Dust bag
• Material Clamp

Specification:

• Power Input: 1675 Watts
• Power Output: 960 Watt
• Blade Speed: 1900 - 3800 rpm
• Blade Diameter: 305 mm
• Blade Bore: 30 mm
• Bevel Capacity: 49/49 °
• Mitre Capacity [right/left]: 60/50 °
• Cutting Capacity at 90°/45° (W x H): 211 x 112 mm
• Cutting Capacity at 90°/90° (W x H): 303 x110 mm
• Cutting Capacity at 90°/90° (W x H): 345 x 76 mm
• Cutting Capacity at 45°/90° (W x H): 268 x 63 mm
• Cutting Capacity at 45°/90° (W x H): 345 x 44 mm
• Cutting Capacity at 90°/45° (W x H): 244 x 76 mm
• Max. Cutting Capacity at 45°/45°: 212 x 76 mm
• Max. Depth of Cut [Saws]: 170 mm
• Weight: 24.8 kg
• Depth: 470 mm
• Length: 770 mm
• Height: 396 mm
• Hand/Arm Vibration - Cutting Wood: <2.5 m/s²
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Sound Power: 100 dB(A)
• Sound Power Uncertainty: 3 dB(A)
• Sound Pressure: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
